Description
These are 4″ Scale Traction Engine/Steam Wagon/Stationary engine Live steam Water lifters. At around 100 PSI these will lift a 10L bucket of water in around 1m 30s.

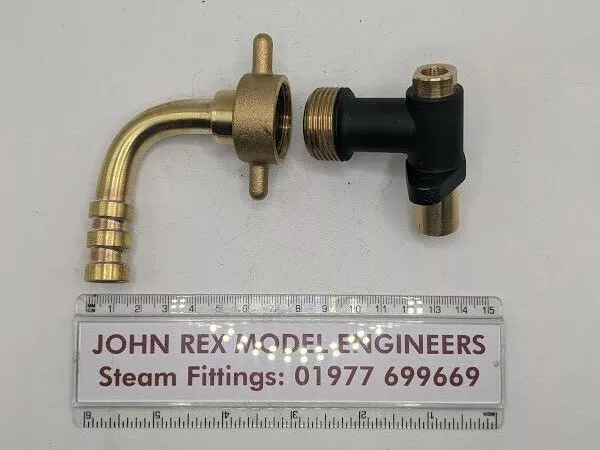

The steam inlet is a 3/8 x 32 tpi female thread designed to be used with 1/4″ Copper pipe. Therefore you can fit with a Single pipe union/elbow etc, to suit your existing engine. (both of which are available under the union section of our shop)
The water lifter has a 5/8 OD body with a 3/4 BSP thread to suit the nut on the tail that is supplied with it. Both the strainer and the Water lifter are designed for use with 5/8 Bore hose.
Supplied as the following options:
Water Lifter
Hose (3m)

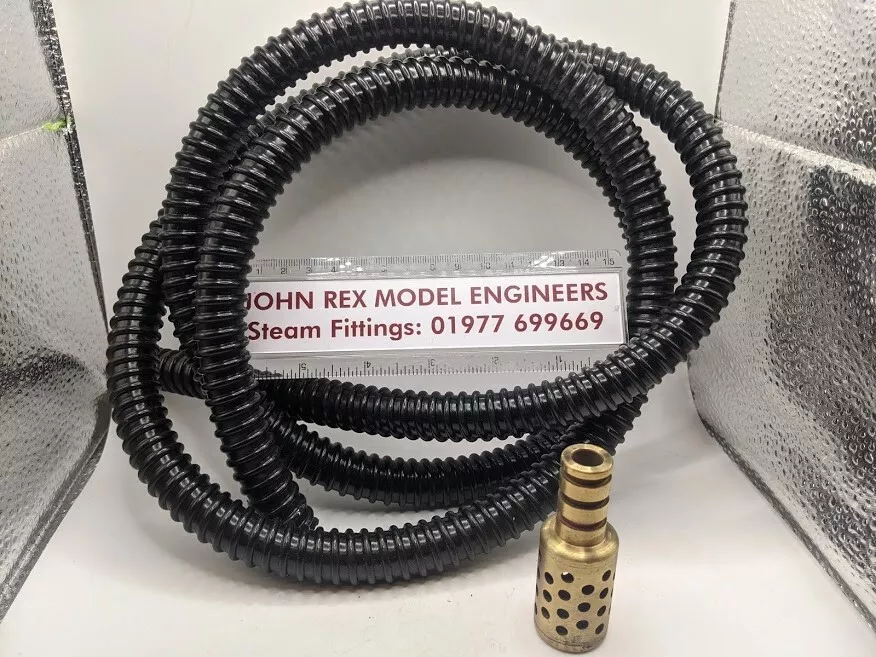

Strainer
Water Lifter Complete with 2m of hose
Strainer and 2m of Hose

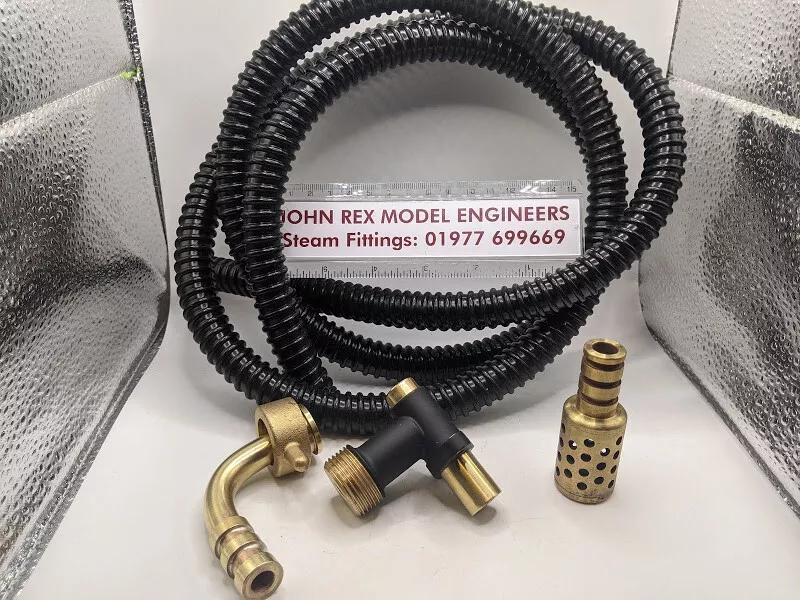

Complete assembly of Water Lifter, 2m of Hose & a Strainer
The scanned in Picture shows the water lifter fitted to a 4″ Burrell SCC Road Loco with bellytanks with an elbow for the steam inlet. And also the other pictures shows it fitted to a 4″ Burrell SC With no bellytanks so direct into the tender also with an elbow for the steam inlet.
These are manufactured items, so please allow up to 7 days for delivery.
